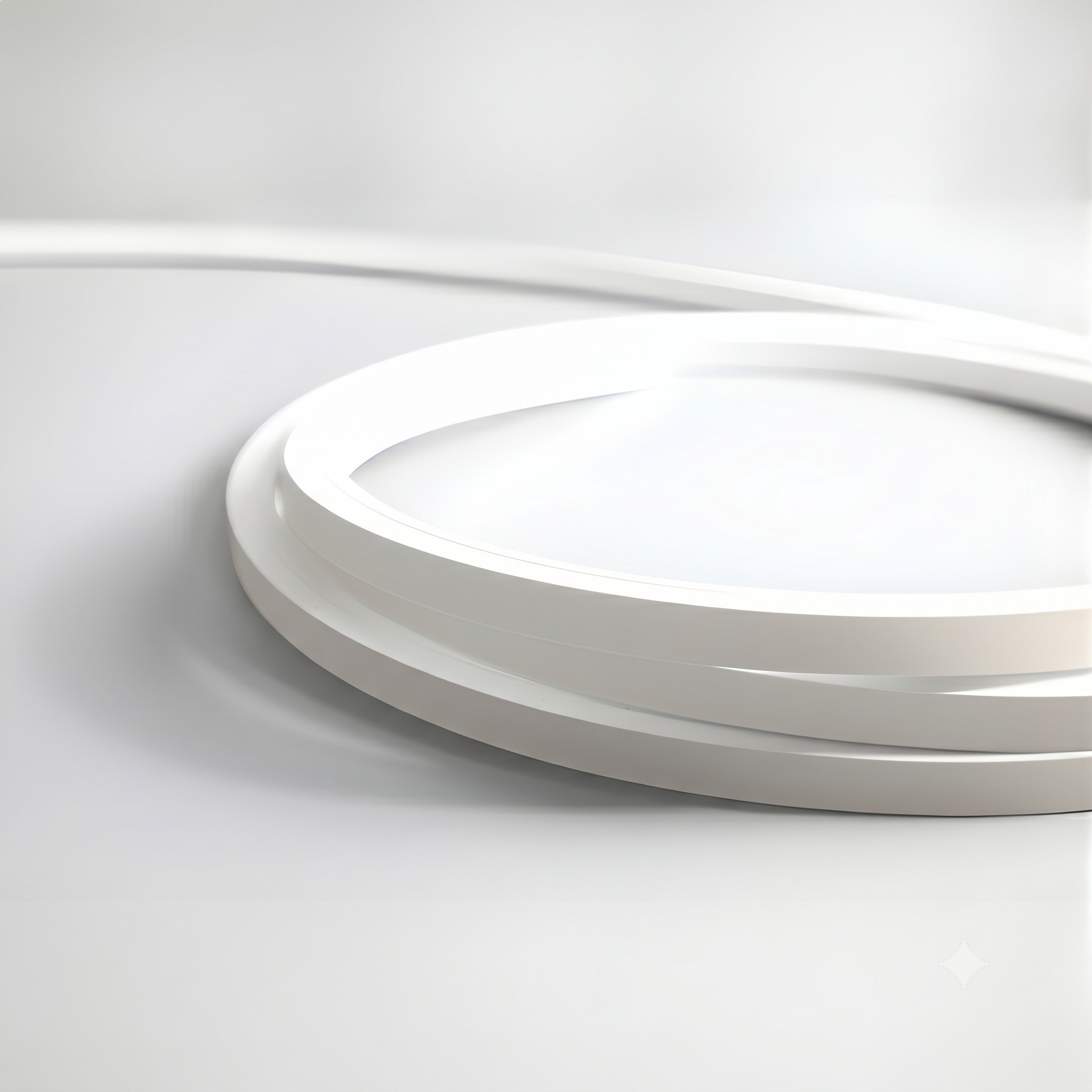

IP67 NEON 2020 24V 3D BENDING LONG RUN SERIES

Product Details

Long run series up to 30m by one input, extrusion silicone LED flexible neon, for outdoor and indoor architectural IP67 protection, specially in-feed system and end cap design enable a dot-free alignment of numerous fixtures. Unique integrated circuit design ensures uniformed light intensity along the entire length of fixture. LED with 3-step MacAdam and guaranteeing consistency and high quality of light. Endless fixture length configurations allow for the ultimate freedom of design. Cut lengths and terminations are pre-assembled at factory to ensure IP rating. Long lifetime of L70B10>54,000 hours with Five-year limited warranty indoor and outdoor.

Technical Specifications

Dimension (W x H) mm:                 20 x 20

Power:                                         4.8W/m, 9.6W/m, 14.4W/m

Voltage:                                       DC 24V / DC 48V

Minimum Length:                           50mm / 100mm

Lumen Output (lm/m):                  240 / 336 / 480 / 672 / 720 / 1008

Storage Temperature:                    -25℃min, 60℃max

IP 67
