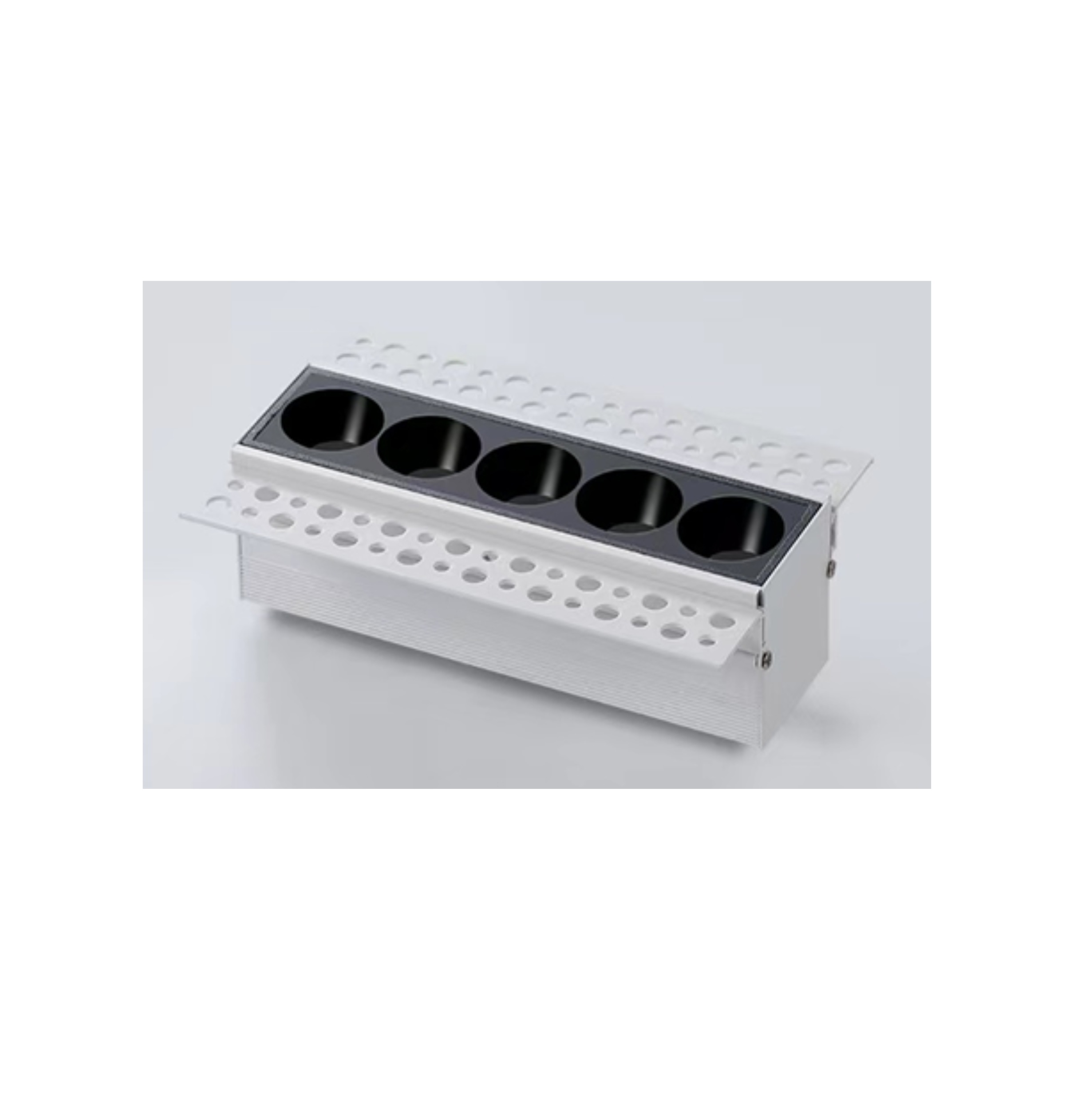

AA-TLL146-10W-TRIMLESS LINEAR LIGHT
Product Details
This recessed anti-glare grid light features a deep black reflector design that minimizes glare and delivers comfortable, uniform illumination. Equipped with an integrated mounting frame for easy installation, it offers a durable structure ideal for commercial areas,
corridors, and accent lighting applications.
Technical Specifications
IP Rating – 43
IK Rating – 08
Source Type – High Power LED
Source Life Time – >50,000h at 25°C Ambient Temperature
CRI – >90
Step McAdam – 3
Source Flux – 1200 lm
Source Efficiency – 120 lm/W
Delivered Flux – 800 lm
Delivered Efficiency – 80 lm/W
Input Power – 10 W
Supply Voltage – 220–240V AC
Insulation Class – Class III
Power Supply – Constant current Driver
Material – Aluminum
Light Color – / CCT 3000K – 6000K
Beam Angle – 15° / 24° / 36°
Mounting Surface – Mount
Reflector Color – Black / White
Finish – Black / White
